YOUR BENEFITS AT A GLANCE
increasing productivity
shortened downtimes- easy handling
- exactly in the result
Flexible in application
- targeted alignment of the components
- measuring the axial distance of the contact surfaces
- measuring the center offset to the tool spindle and the tool magazine
(Values can be entered directly into the control) - Determination of the angular position
(Position of the groove in the spindle to the position of the groove in the gripper groove) - Determination of the correction direction
and path - different offset tolerances adjustable
reducing costs
- fast
- precise
- simply
- ingenious
TECHNICAL DATA

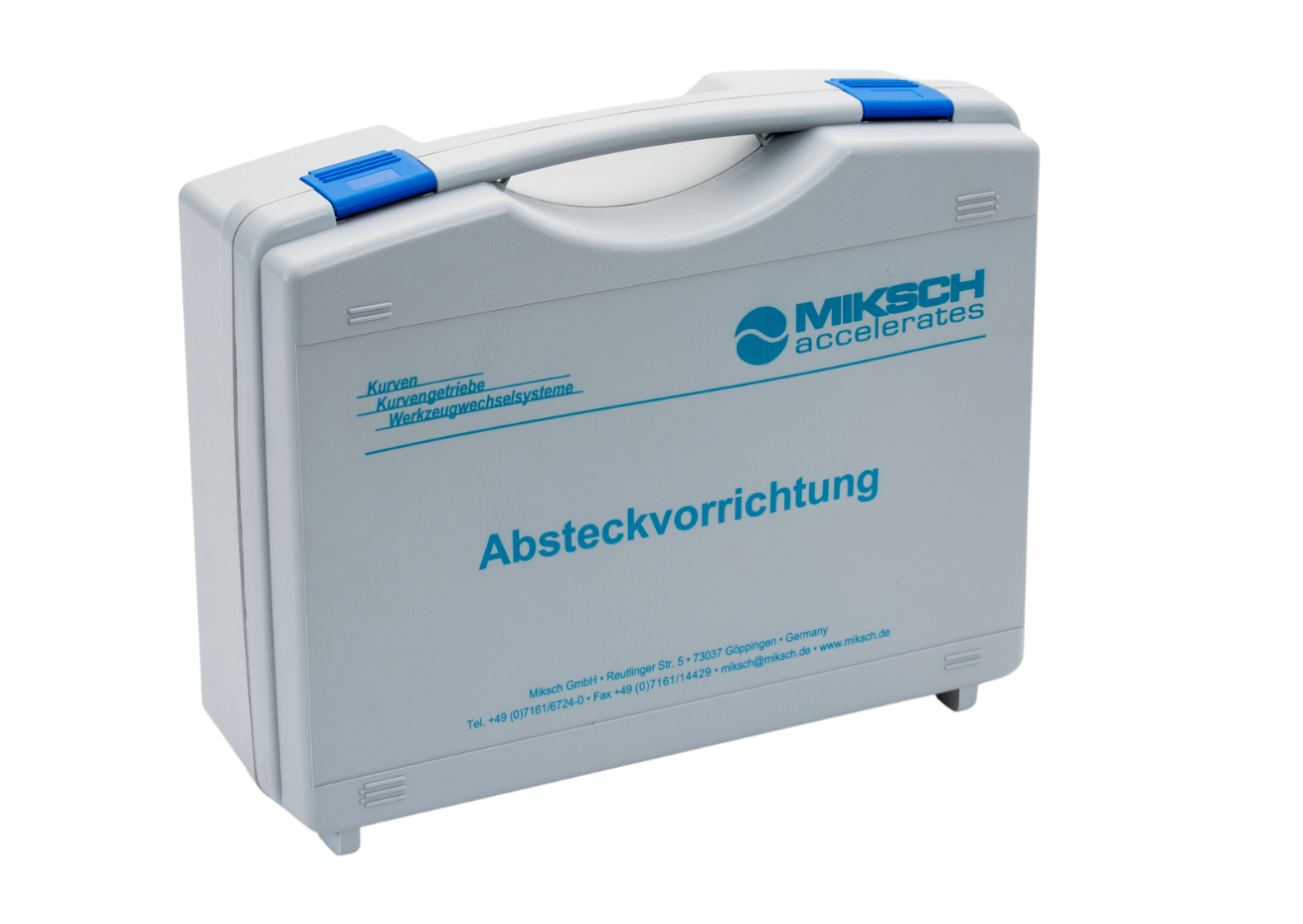

| Designation | SETT setup tool |
| tool holders | all common tool holders Special recordings on request |
| setting options | Concentricity + Parallelism + Center offset + Correction direction and path + Angular position |
