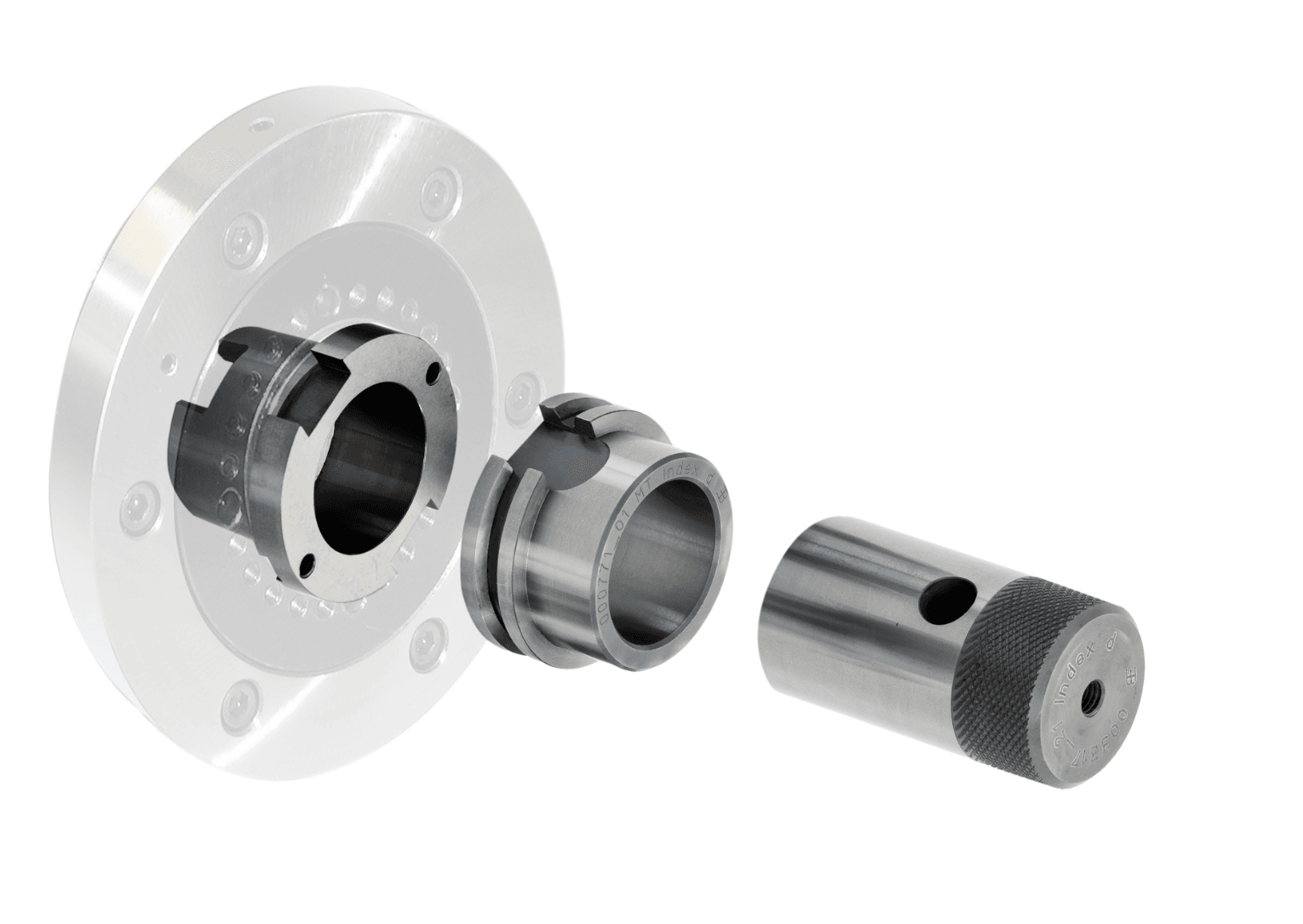

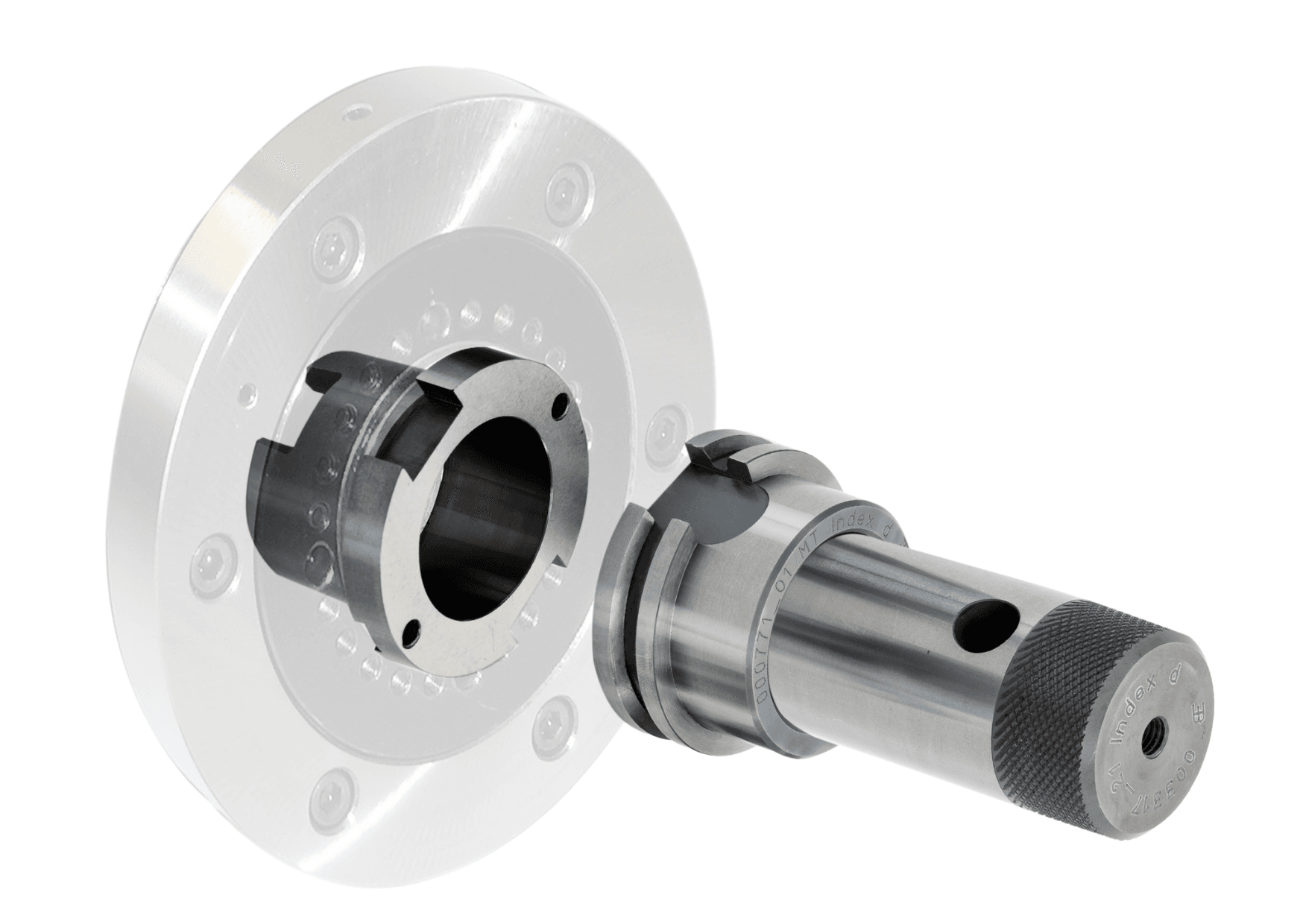

The AVO alignment device is used for the axial and concentric alignment (position adjustment) of two interacting machine components.
areas of application and possibilities
Alignment of tool changers with gripper arms to chain and disc magazines
Alignment of chain or disc magazine to the tool spindle
Alignment of the transfer unit or swivel unit on the chain or disc magazine
The alignment is done via a ““Tentative procedure”.
You will receive an OK or NOK result.
Do you need initial technical data or details about an AVO staking device? No problem. Send us a completely non-binding inquiry, and we'll be happy to help.
Under „Download“ you will find our technical questionnaire so that we can interpret your request in detail.
shortened downtimes easy handling exactly in the result targeted alignment of the components Determination of the axial distance of the contact surfaces Determination of the center offset to the spindle and magazine fast precise simply| Designation | AVO alignment device |
| tool holders | available for all common tool holders |
| setting options | Concentricity + Parallelism |
